Air Curtain
AIRTECH AIR CURTAIN AAC-20256C A large amount of insects flows when the entrance to the warehouse or preparation room is opened. The insect curtain is a device that prevents insects from entering when the door is opened. Designed to fit the door opening. A high-speed sheet shutter can be built-in. Product points At the opening, the insects are prevented from entering by the unbalanced airflow from the left and right (patented). Designed to match the dimensions of the opening. High-speed sheet shutter type provides higher insect repellent effect. Air blowing and sheet shutter are linked.
AIRTECH AIR CURTAIN
AAC-20256C
A large amount of insects flows when the entrance to the warehouse or preparation room is opened. The insect curtain is a device that prevents insects from entering when the door is opened. Designed to fit the door opening. A high-speed sheet shutter can be built-in.
Product points
- At the opening, the insects are prevented from entering by the unbalanced airflow from the left and right (patented).
- Designed to match the dimensions of the opening.
- High-speed sheet shutter type provides higher insect repellent effect. Air blowing and sheet shutter are linked.

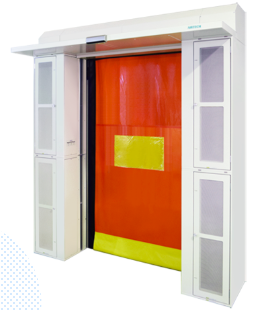

Slim type insect curtain
| Model |
AAC-20256C |
|---|---|
| Dust collection element |
Saran Net |
| Processing air volume |
High speed side: 105m³ / min, Low speed side: 130m³ / min |
| Blowing wind speed |
High speed: about 25m / sec, low speed: about 12m / sec |
| Noise level |
About 83dBA |
| Power supply |
AC200 3φ 50 / 60Hz |
| power consumption |
2,700W |
| Facility power |
Approx.5,300VA * Leakage current is 8mA or less |
| Blower |
LNF-6D × 8 * DC brushless turbo fan |
| weight |
About 300kg |
| Construction |
Body: Steel sheet baking finish |

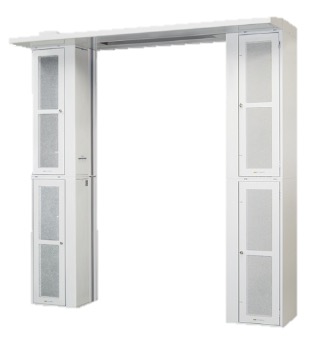

Single blow type insect curtain
| Model |
AAC-19251KL |
|---|---|
| Dust collection element |
Saran Net |
| Processing air volume |
About 120m³ / min |
| Blowing wind speed |
About 17m / sec |
| Noise level |
About 86dBA |
| Power supply |
AC200V 3φ50 / 60Hz |
| power consumption |
2,820W |
| Facility power |
Approximately 4,400VA |
| Blower |
4 units (one side) |
| weight |
170 kg |
| Construction |
Body: Steel sheet baking finish |
