Clean Bench
AIRTECH clean benches are economical, lightweight, and come in a variety of standard sizes. They are available in Table Top, Console, SS-MAC, and custom models. All models use either extruded anodized aluminium or cold rolled steel main body construction. Clean bench is the most effective method of ensuring a clean zone around a critical work or inspection process. The work area can be kept at class 100, 10, or 1 utilizing horizontal or vertical laminar air flow. Clean benches are perfect for a full range of manufacturing and inspection processes in the semiconductor, microelectronic, pharmaceutical, or biomedical industries. #SGVS-840K #SGVS-1300L
AIRTECH clean benches are economical, lightweight, and come in a variety of standard sizes. They are available in Table Top, Console, SS-MAC, and custom models. All models use either extruded anodized aluminium or cold rolled steel main body construction.
Clean bench is the most effective method of ensuring a clean zone around a critical work or inspection process. The work area can be kept at class 100, 10, or 1 utilizing horizontal or vertical laminar air flow.
Clean benches are perfect for a full range of manufacturing and inspection processes in the semiconductor, microelectronic, pharmaceutical, or biomedical industries.
#SGVS-840K
#SGVS-1300L
| SGVS-840K | SGVS-1300L | |
| Cleanliness | ISO CLASS 5 | ISO CLASS 5 |
| Air Velocity | ≥0.3 m/s | ≥0.3 m/s |
| Noise | ≤62 dBA | ≤62 dBA |
| Illumination | ≥300 Lx | ≥300 Lx |
| Power | AC220V, 1φ, 50Hz | AC220V, 1φ, 50Hz |
| Materials | Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory. | |
| Work Dimension (W1XD1XH1) | 680 x 650 x 570 mm | 1140 x 650 x 720 mm |
| Overall Dimension (WXDXH) | 840 x 825 x 1625 mm | 1300 x 825 x 1775 mm |
Optional Accessories: UV Lamp
#SGVS-840K
#SGVS-1300L

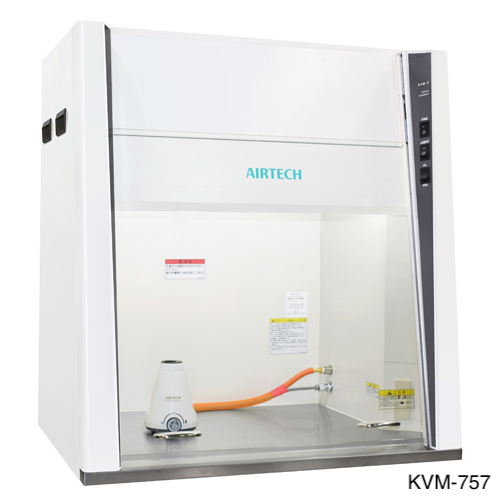

VS-1006 / VS-1306 / VS-1606 / VS-1916, FS-1005 / FS-1305 / FS-1605 / FS-1915, L-VS-1001, L-VS-1301, B-MAC-1000V, B-MAC-1300V, HS-1006, HS-1306, HS-1606, HS1916, KVM-757
