Clean Hand Washer & Dryer
AIRTECH’s Clean Hand Washer / Dryer is the answer to today’s higher cleanroom standards. This system is ideal anywhere hand/glove cleanliness must be maintained and insures consistent hand washing methodology between operators. Our Hand Washer/Dryer is so fast and easy to use that your washing frequency and compliance standards will easily be attained. Simply put your hands in the wash chamber and a photoelectric sensor turns the water on for about seven seconds. Then HEPA filtrated clean air will come out of the nozzle for about 15 seconds to dry the hands. If the hands are not completely dry after the drying process, the manual drying button can be pressed for additional drying time. The Hand Washer/Dryer features: small footprint (600W x 480D x 1100H), steel with powder coating main body construction, porcelain sink, 99.99% HEPA filter @ 0.3 micron, air velocity 100 m/s, mirror, and motion sensors allow for hand free operation. We offer 2 different m
AIRTECH’s Clean Hand Washer / Dryer is the answer to today’s higher cleanroom standards. This system is ideal anywhere hand/glove cleanliness must be maintained and insures consistent hand washing methodology between operators.
Our Hand Washer/Dryer is so fast and easy to use that your washing frequency and compliance standards will easily be attained. Simply put your hands in the wash chamber and a photoelectric sensor turns the water on for about seven seconds. Then HEPA filtrated clean air will come out of the nozzle for about 15 seconds to dry the hands. If the hands are not completely dry after the drying process, the manual drying button can be pressed for additional drying time.
The Hand Washer/Dryer features: small footprint (600W x 480D x 1100H), steel with powder coating main body construction, porcelain sink, 99.99% HEPA filter @ 0.3 micron, air velocity 100 m/s, mirror, and motion sensors allow for hand free operation.
We offer 2 different models with distinct features
- Clean hand washer & dryer (AHW-05)
- Clean hand dryer (AHD Series)
| Model |
AHW-05F1 |
|---|---|
| Dust collection efficiency |
More than 99.99% with 0.3 μm particles (atmospheric dust) |
| Dust collecting element |
Main filter: HEPA filter |
| Supply air volume |
1.8 m³ / min |
| Blowing wind speed |
100 m / sec |
| noise |
71 dBA * At 1 m ahead of the device |
| power consumption |
About 850 VA |
| Power supply |
AC100V 1 Φ 50/60 Hz |
| weight |
50 kg |
| Construction |
Body: Steel plate baked paint, sink, inside the cabinet: made of stainless steel |
| Washing method |
Automatic faucet (Aqua Auto) |
| option |
Automatic soap dispenser, electric water heater |

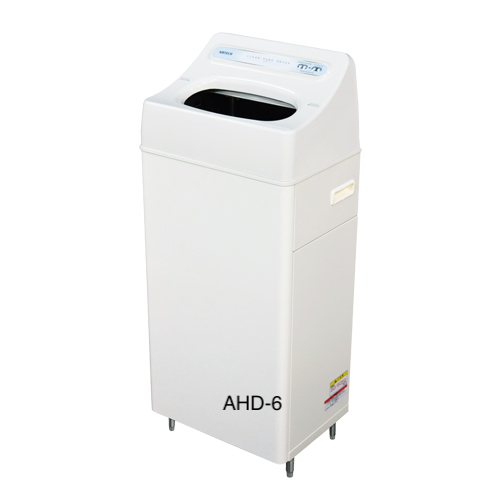

| Model |
AHD-6 (Clean Hand Dryer) |
|---|---|
| Dust collection efficiency |
More than 99.99% with 0.3 μm particles (atmospheric dust) |
| Dust collecting element |
Main filter: HEPA filter |
| Supply air volume |
About 1.2 m³ / min |
| Blowing wind speed |
About 190 m / sec |
| noise |
Approximately 80 dBA * 1 m from the main body, 1 m from the floor, measured in an anechoic chamber |
| Power supply |
AC 100 V 1 φ 50/60 Hz |
| power consumption |
About 1050 W |
| Equipment power |
About 1350 VA |
| weight |
Approximately 30 kg |
| Construction |
Body: Steel plate baked paint, upper case: antibacterial ABS resin, |
