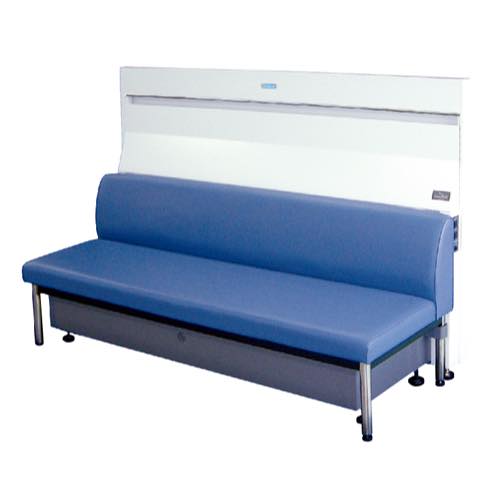

Safety Lobby Chairs
Airtech manufactures safety lobby chairs which prevent Airborne & Droplet transmission. It has an inlet airflow which absorbs the contaminated air from the atmosphere and process through the pre-filter found on the ASC. From the pre-filter the air transmits to the HEPA Filter with fan, where the absorbed is contaminated Air is completely purified and releases as a clean air to the atmosphere again.
Airtech manufactures safety lobby chairs which prevent Airborne & Droplet transmission. It has an inlet airflow which absorbs the contaminated air from the atmosphere and process through the pre-filter found on the ASC. From the pre-filter the air transmits to the HEPA Filter with fan, where the absorbed is contaminated Air is completely purified and releases as a clean air to the atmosphere again.
| Model |
ASC-1801 |
|---|---|
| Dust collection efficiency |
More than 99.99% with 0.3 μm particles (atmospheric dust) |
| Dust collecting element |
Main filter: HEPA filter (3A - 507650 TLLAD) × 2 |
| Processing air volume |
Approximately 10 m³ / min at rapid velocity, about 5 m³ / min on standard time |
| noise |
Approximately 47 dBA at high speed, about 38 dBA at standard time |
| Power supply |
AC 100 V 1 φ 50/60 Hz |
| power consumption |
Approximately 130 W rapidly, about 100 W standard time |
| weight |
Body: Approximately 98 Kg, lobby chair approx 30 Kg |
| Construction |
Body / Fan Case: Steel Sheet Milling Paint Coating |
| Lobby chair |
Three seats, with backrest W900 × D1080 × H1495 mm (Kokuyo made CN-150-VF64N) |
